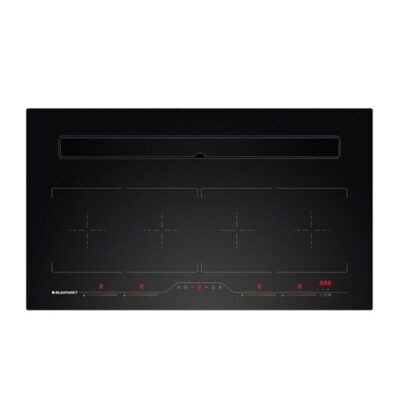

Blaupunkt Hob Combi Ind 90cm Ext Fan 4z Boost Touch F/Less (Hardwire Schuko)

SKU: AP-5IX99290AU Category: Tag:

90cm Ext Fan 4z Boost Touch F/Less (Hardwire Schuko)




Output, consumption

Voltage: 220-240 V
Total connected load: 8.8 kW
4 induction cooking zones with booster:

4 cooking zones ? 22 cm, 2.1 kW (3.7 kW)
Extractor fan

Voltage: 220?240 V
Total connected load: 165 W
Average power consumption: 30.8 kWh / year
Noise min./max. normal level/intensive level: min 45 dB(A) max. 65 dB(A) max. 70 dB(A)
Fan output max. normal level /intensive level*: in extraction mode 580 m3/h / 730 m3/h, in circulation mode 450 m3/h / 560 m3/h
* According to EU Regulation No. 65/2014 / Fan capacity according to EN 61591

Design, comfort

Touch control with Smart Slider
Boost function for all induction cooking zones
Electronic control in 10 power levels
Main switch for hob and extractor fan
Toggle function with fixed temperatures (40 ?C, 70 ?C and 98 ?C)
Cooking Chef Mode, Pause and Recall
Residual heat display
Pot detection
Child lock
Countdown function
2 x bridging function
Flush-mounted installation possible
Extractor fan

Electronic opening of the extractor fan
Glass ceramic, black
Suitable for installation in a kitchenette or kitchen island
Optional extraction or circulation mode (for circulation mode a carbon filter is required)
6-level fan output controllable via Touch Control with 7-segment LED display
5 power levels + 1 intensive level
Intensive level with automatic reset for extraction mode
Automatic three-level blower overrun of 5/10 and 20 minutes with LED display
Metallic grease filter and carbon filter saturation indicator via LED warning light
For the cleaning/emptying of metallic filters and water collection vessels, the appliance automatically blocks after 40 hours of operation
Automatic overrun for circulation mode
Water collection tank: 0.75 litre capacity
Powerful and quiet blower
Metallic grease filter, dishwasher-safe
Dimensions H x W x D
Appliance dimensions: 82.7 ? 98.2 x 90 x 53 cm
Installation dimensions: 5.8 x 86.2 x 49.5 cm
Planning information:
Air outlet/exhaust air duct to the left
It is not possible to plan in dishwashers, underframe coolers, base drawers, etc. in the exhaust air routing area
For the circulation variant, it is not possible to plan in dishwashers, underframe coolers, base drawers, etc. directly on the left side
Min. cabinet width 900 mm
Worktop depth min. 600 mm (correspondingly deeper for the planning of recess panelling)
Base height min. 100 mm
